CLEAN results for ADOTSN-23 simulations

CLEAN results for xADOTSN-23B7 simulations

Naming convention
-----------------
First character: 	K = (Kogan) ring type array
			C = (Conway) spiral type array
Second character:  	A, C or E, denoting resolution of array
Characters 3-5:         Member of SIL- M51, CYG, MAR, SDC or MPD
Characters 6 and 7:     SN (snapshot) or track, e.g. _4 for 4hr track
Characters 8-10:        signed declination
Characters 11 and 12:   Wavelength, e.g. _1 or _3 for 1 and 3mm respectively
			or b7  corresponding to ALMA band 7 frequency (345GHz)

Images CLEANed for 10,000 iterations.

Note also that the fidelity image is the ratio of (convolved model image) and (absolute value of the difference image truncated at 0.7 x rms of difference image). Importantly, in the figures below this latter rms value is different for each of the K and C array cases, resulting in the C array Fidelity image showing more structure despite (or as a consequence of) having half the rms value for its difference image.

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KADOTSN-23B7... ...} \par\parbox[t]{578pt}{~~~~~~a) contour plots of CLEAN image.} \par\end{figure}$

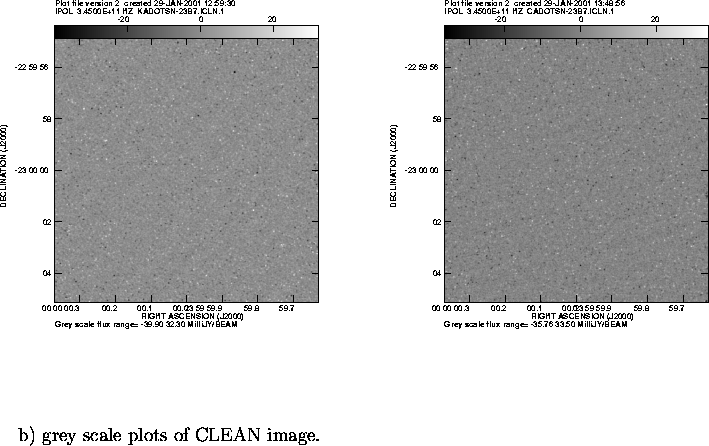

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KADOTSN-23B7... ...par\parbox[t]{578pt}{~~~~~~b) grey scale plots of CLEAN image.} \par\end{figure}$

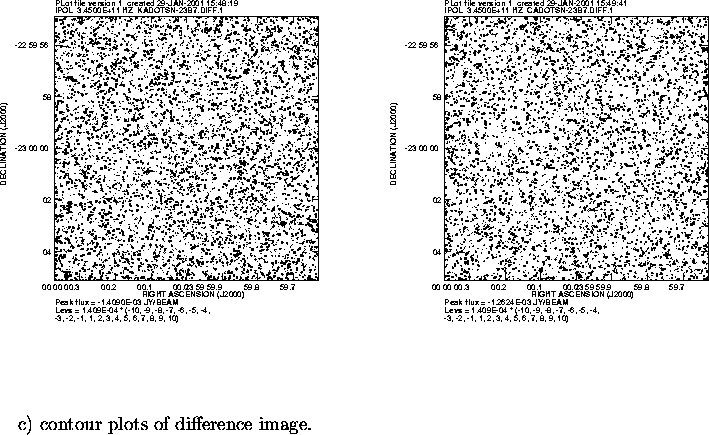

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KADOTSN-23B7... ...r\parbox[t]{578pt}{~~~~~~c) contour plots of difference image.} \par\end{figure}$

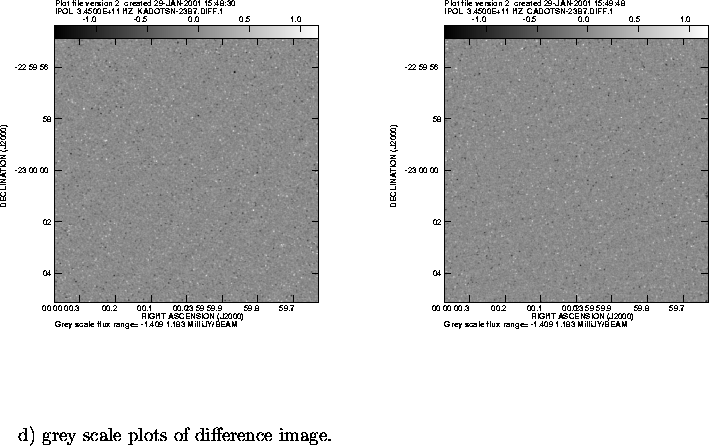

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KADOTSN-23B7... ...arbox[t]{578pt}{~~~~~~d) grey scale plots of difference image.} \par\end{figure}$

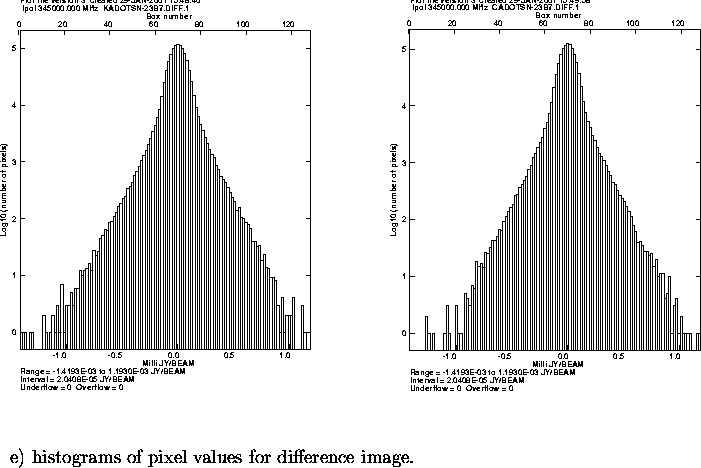

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KADOTSN-23B7... ...8pt}{~~~~~~e) histograms of pixel values for difference image.} \par\end{figure}$

f) Listing of max, min, mean and rms for difference images

Image= KADOTSN-23B7.DIFF . 1 8 xywind= 1 1 1024 1024 Mean and rms found by including all data: Mean= 2.3357E-07 Rms= 9.3125E-05 JY/BEAM over 1048576. pixels Minimum=-1.4090E-03 at 698 895 1 1 Maximum= 1.1404E-03 at 771 359 1 1

Image= CADOTSN-23B7.DIFF . 1 8 xywind= 1 1 1024 1024 Mean and rms found by including all data: Mean= 2.1356E-07 Rms= 8.8608E-05 JY/BEAM over 1048576. pixels Minimum=-1.2624E-03 at 1016 6 1 1 Maximum= 1.1828E-03 at 1017 769 1 1

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KADOTSN-23B7... ...ar\parbox[t]{578pt}{~~~~~~g) contour plots of Fidelity images.} \par\end{figure}$

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KADOTSN-23B7... ...parbox[t]{578pt}{~~~~~~h) grey scale plots of Fidelity images.} \par\end{figure}$

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KandCADOTSN-... ...n bins with 0 pixels and 1 pixel\\ in the graph on the left.} \par\end{figure}$

j) Listing of max, min, mean and rms for fidelity images

Image= KADOTSN-23B7.FID . 1 8 xywind= 1 1 1024 1024 Mean and rms found by including all data: Mean= 1.3027E-03 Rms= 1.7436E-02 RATIO over 1048576. pixels Minimum=-2.4912E-07 at 808 759 1 1 Maximum= 1.5917E+00 at 820 756 1 1

Image= CADOTSN-23B7.FID . 1 8 xywind= 1 1 1024 1024 Mean and rms found by including all data: Mean= 1.3634E-03 Rms= 1.7540E-02 RATIO over 1048576. pixels Minimum=-2.6150E-07 at 808 758 1 1 Maximum= 1.5380E+00 at 824 760 1 1

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KandCADOTSN-... ...\\ units may be Jy/beam or Jy/pixel (irrelevant as we plot ratios)} \end{figure}$
