CLEAN results for BSDC_4-70 simulations

CLEAN results for xBSDC_4-70B7 simulations

Naming convention
-----------------
First character: 	K = (Kogan) ring type array
			C = (Conway) spiral type array
Second character:  	A, C or E, denoting resolution of array
Characters 3-5:         Member of SIL- M51, CYG, MAR, SDC or MPD
Characters 6 and 7:     SN (snapshot) or track, e.g. _4 for 4hr track
Characters 8-10:        signed declination
Characters 11 and 12:   Wavelength, e.g. _1 or _3 for 1 and 3mm respectively
			or b7  corresponding to ALMA band 7 frequency (345GHz)

Images CLEANed for 10,000 iterations.

Note also that the fidelity image is the ratio of (convolved model image) and (absolute value of the difference image truncated at 0.7 x rms of difference image). Importantly, in the figures below this latter rms value is different for each of the K and C array cases, resulting in the C array Fidelity image showing more structure despite (or as a consequence of) having half the rms value for its difference image.

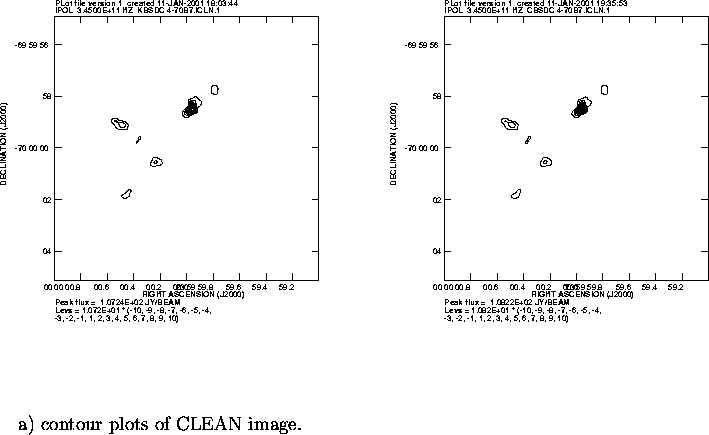

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KBSDC_4-70B7... ...} \par\parbox[t]{578pt}{~~~~~~a) contour plots of CLEAN image.} \par\end{figure}$

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KBSDC_4-70B7... ...par\parbox[t]{578pt}{~~~~~~b) grey scale plots of CLEAN image.} \par\end{figure}$

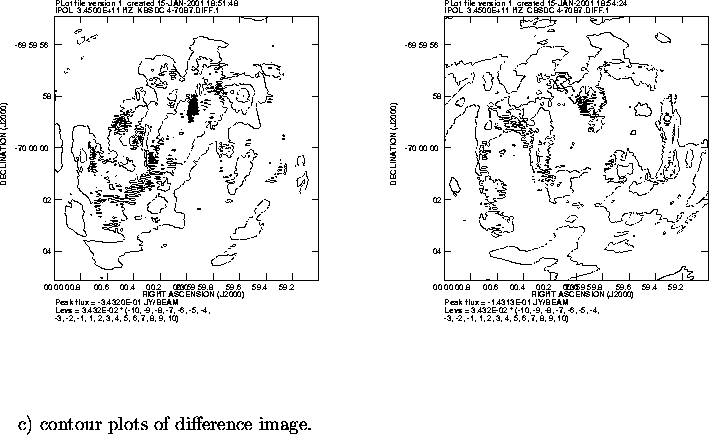

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KBSDC_4-70B7... ...r\parbox[t]{578pt}{~~~~~~c) contour plots of difference image.} \par\end{figure}$

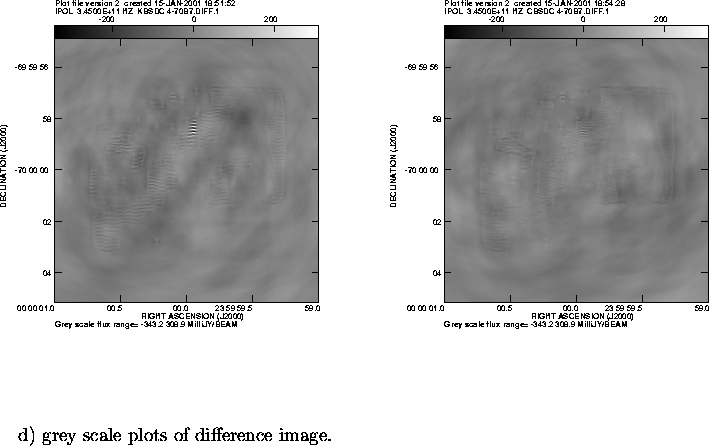

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KBSDC_4-70B7... ...arbox[t]{578pt}{~~~~~~d) grey scale plots of difference image.} \par\end{figure}$

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KBSDC_4-70B7... ...8pt}{~~~~~~e) histograms of pixel values for difference image.} \par\end{figure}$

f) Listing of max, min, mean and rms for difference images

Image= KBSDC_4-70B7.DIFF . 110 xywind= 1 1 513 513 Mean and rms found by including all data: Mean=-2.0212E-02 Rms= 2.4201E-02 JY/BEAM over 263169. pixels Minimum=-3.4320E-01 at 270 340 1 1 Maximum= 3.0893E-01 at 270 337 1 1

Image= CBSDC_4-70B7.DIFF . 110 xywind= 1 1 513 513 Mean and rms found by including all data: Mean=-2.2598E-02 Rms= 2.1658E-02 JY/BEAM over 263169. pixels Minimum=-1.4313E-01 at 271 333 1 1 Maximum= 5.3604E-02 at 444 1 1 1

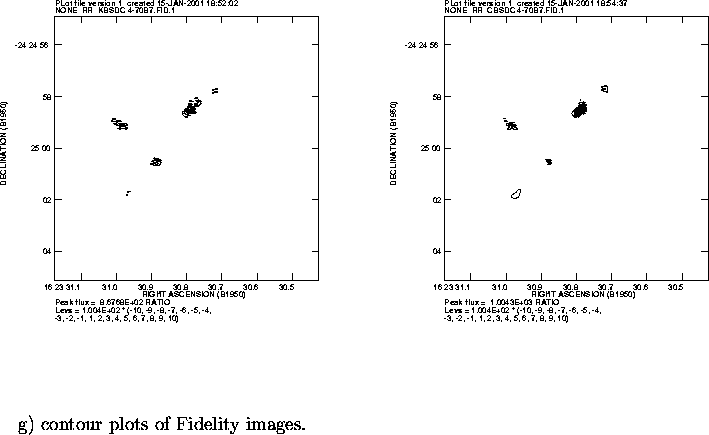

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KBSDC_4-70B7... ...ar\parbox[t]{578pt}{~~~~~~g) contour plots of Fidelity images.} \par\end{figure}$

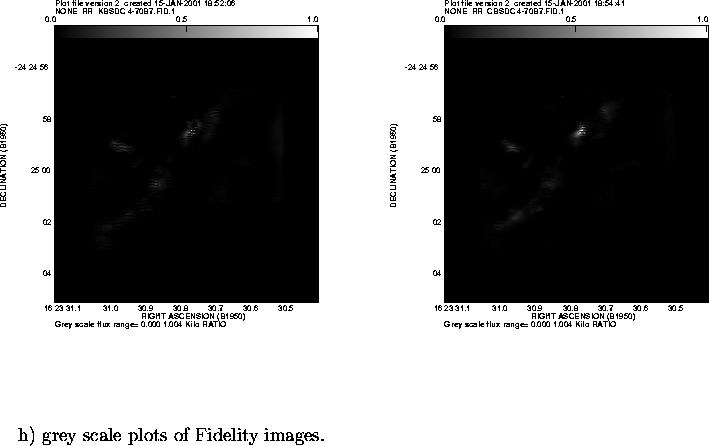

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KBSDC_4-70B7... ...parbox[t]{578pt}{~~~~~~h) grey scale plots of Fidelity images.} \par\end{figure}$

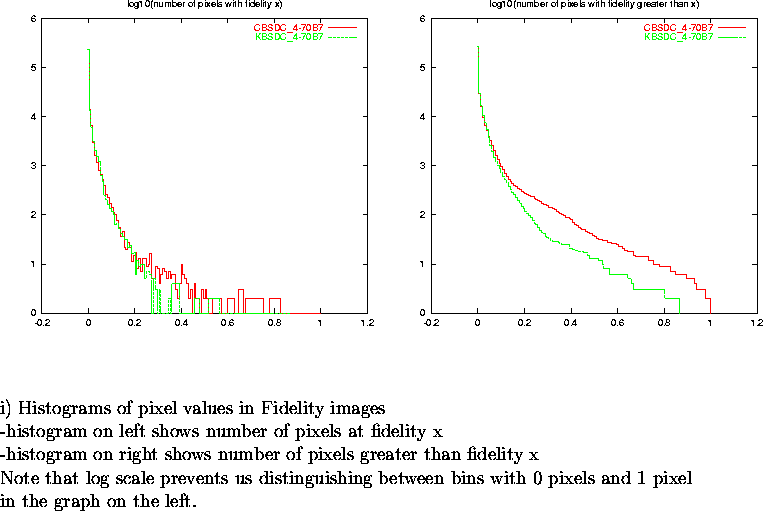

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KandCBSDC_4-... ...n bins with 0 pixels and 1 pixel\\ in the graph on the left.} \par\end{figure}$

j) Listing of max, min, mean and rms for fidelity images

Image= KBSDC_4-70B7.FID . 110 xywind= 1 1 513 513 Mean and rms found by including all data: Mean= 2.7734E+00 Rms= 1.2659E+01 RATIO over 263169. pixels Minimum=-6.0506E-06 at 504 335 1 Maximum= 8.6768E+02 at 267 332 1

Image= CBSDC_4-70B7.FID . 110 xywind= 1 1 513 513 Mean and rms found by including all data: Mean= 2.9828E+00 Rms= 1.6500E+01 RATIO over 263169. pixels Minimum=-6.7867E-06 at 342 337 1 Maximum= 1.0043E+03 at 268 335 1

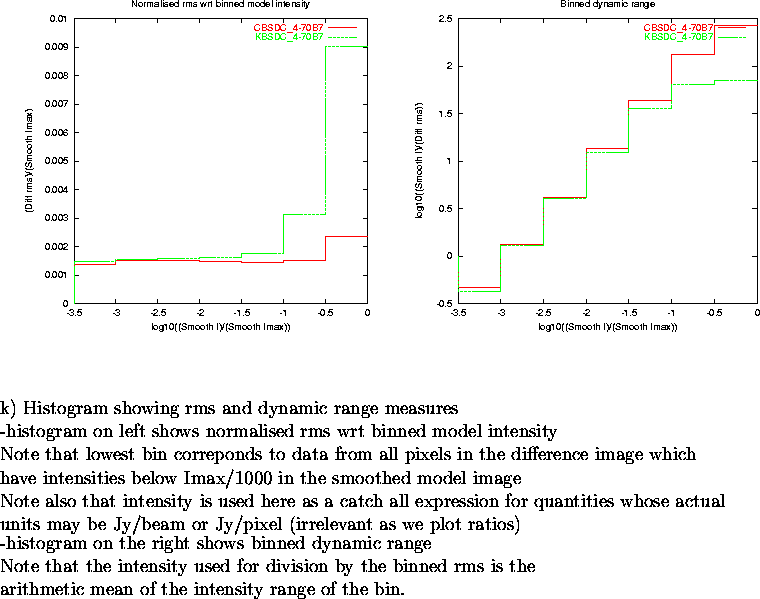

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KandCBSDC_4-... ...s is the\\ arithmetic mean of the intensity range of the bin. \par\end{figure}$

2001-02-15
