CLEAN results for DM51_4-23 simulations

CLEAN results for xDM51_4-23B7 simulations

Naming convention
-----------------
First character: 	K = (Kogan) ring type array
			C = (Conway) spiral type array
Second character:  	A, C or E, denoting resolution of array
Characters 3-5:         Member of SIL- M51, CYG, MAR, SDC or MPD
Characters 6 and 7:     SN (snapshot) or track, e.g. _4 for 4hr track
Characters 8-10:        signed declination
Characters 11 and 12:   Wavelength, e.g. _1 or _3 for 1 and 3mm respectively
			or b7  corresponding to ALMA band 7 frequency (345GHz)

Images CLEANed for 10,000 iterations.

Note also that the fidelity image is the ratio of (convolved model image) and (absolute value of the difference image truncated at 0.7 x rms of difference image). Importantly, in the figures below this latter rms value is different for each of the K and C array cases, resulting in the C array Fidelity image showing more structure despite (or as a consequence of) having half the rms value for its difference image.

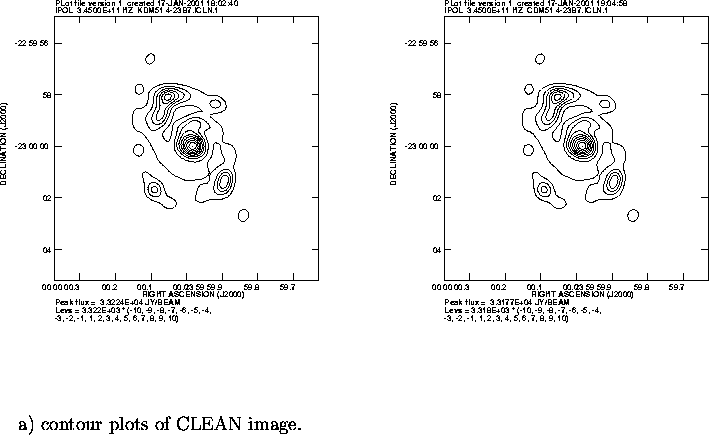

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KDM51_4-23B7... ...} \par\parbox[t]{578pt}{~~~~~~a) contour plots of CLEAN image.} \par\end{figure}$

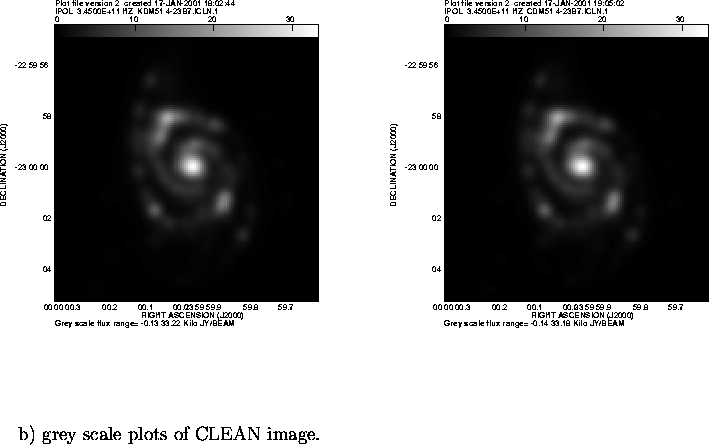

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KDM51_4-23B7... ...par\parbox[t]{578pt}{~~~~~~b) grey scale plots of CLEAN image.} \par\end{figure}$

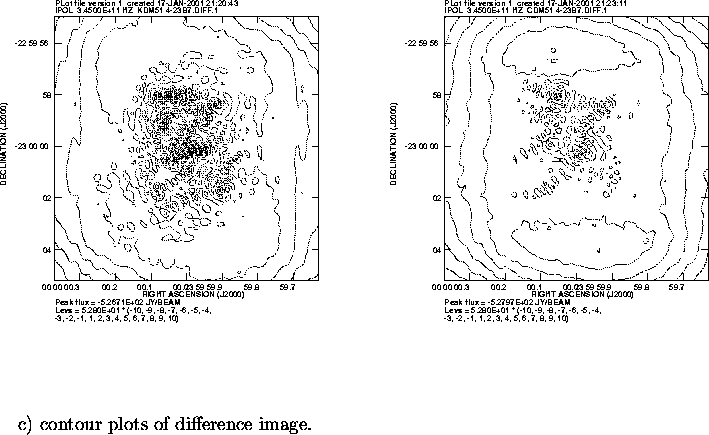

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KDM51_4-23B7... ...r\parbox[t]{578pt}{~~~~~~c) contour plots of difference image.} \par\end{figure}$

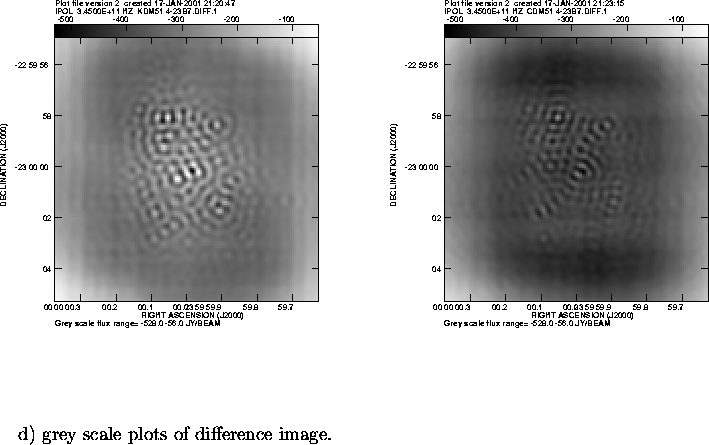

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KDM51_4-23B7... ...arbox[t]{578pt}{~~~~~~d) grey scale plots of difference image.} \par\end{figure}$

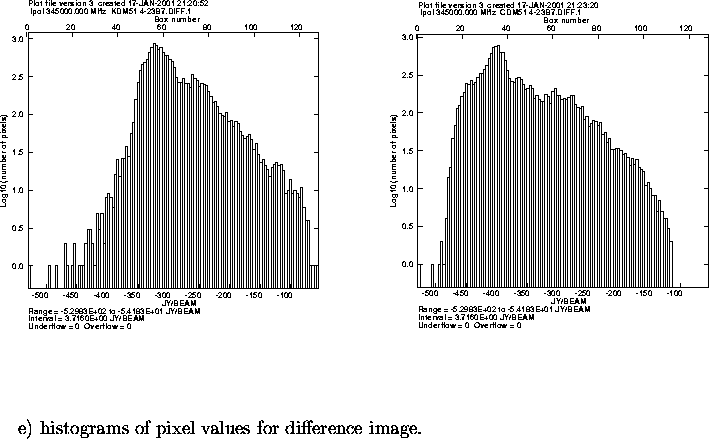

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KDM51_4-23B7... ...8pt}{~~~~~~e) histograms of pixel values for difference image.} \par\end{figure}$

f) Listing of max, min, mean and rms for difference images

Image= KDM51_4-23B7.DIFF . 1 3 xywind= 1 1 129 129 Mean and rms found by including all data: Mean=-2.9013E+02 Rms= 5.0918E+01 JY/BEAM over 16641. pixels Minimum=-5.2671E+02 at 68 64 1 1 Maximum=-5.6041E+01 at 65 63 1 1

Image= CDM51_4-23B7.DIFF . 1 3 xywind= 1 1 129 129 Mean and rms found by including all data: Mean=-3.6744E+02 Rms= 6.5944E+01 JY/BEAM over 16641. pixels Minimum=-5.2797E+02 at 68 64 1 1 Maximum=-1.1420E+02 at 129 129 1 1

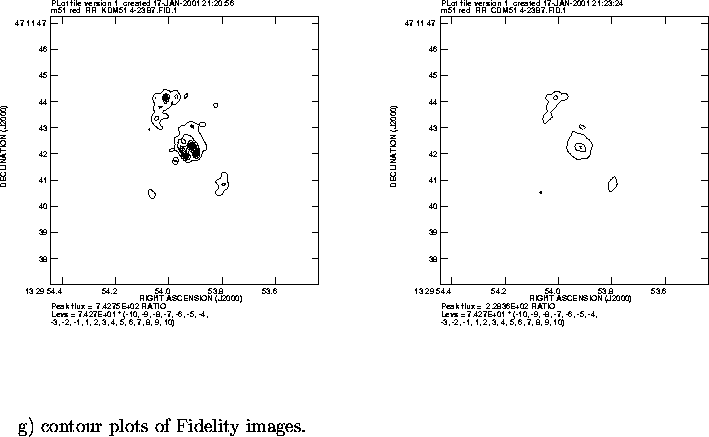

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KDM51_4-23B7... ...ar\parbox[t]{578pt}{~~~~~~g) contour plots of Fidelity images.} \par\end{figure}$

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KDM51_4-23B7... ...parbox[t]{578pt}{~~~~~~h) grey scale plots of Fidelity images.} \par\end{figure}$

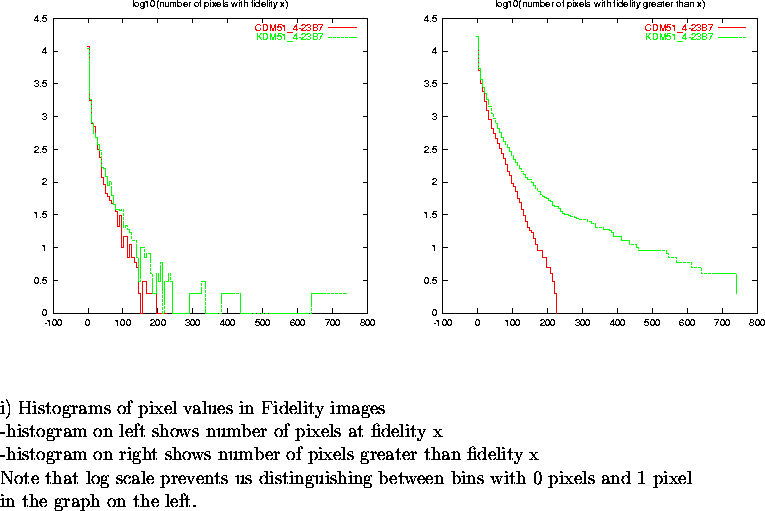

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KandCDM51_4-... ...n bins with 0 pixels and 1 pixel\\ in the graph on the left.} \par\end{figure}$

j) Listing of max, min, mean and rms for fidelity images

Image= KDM51_4-23B7.FID . 1 3 xywind= 1 1 129 129 Mean and rms found by including all data: Mean= 1.0246E+01 Rms= 2.8590E+01 RATIO over 16641. pixels Minimum=-2.6778E-06 at 1 1 1 Maximum= 7.4275E+02 at 68 67 1

Image= CDM51_4-23B7.FID . 1 3 xywind= 1 1 129 129 Mean and rms found by including all data: Mean= 7.1426E+00 Rms= 1.5941E+01 RATIO over 16641. pixels Minimum=-1.5935E-06 at 1 1 1 Maximum= 2.2836E+02 at 68 67 1

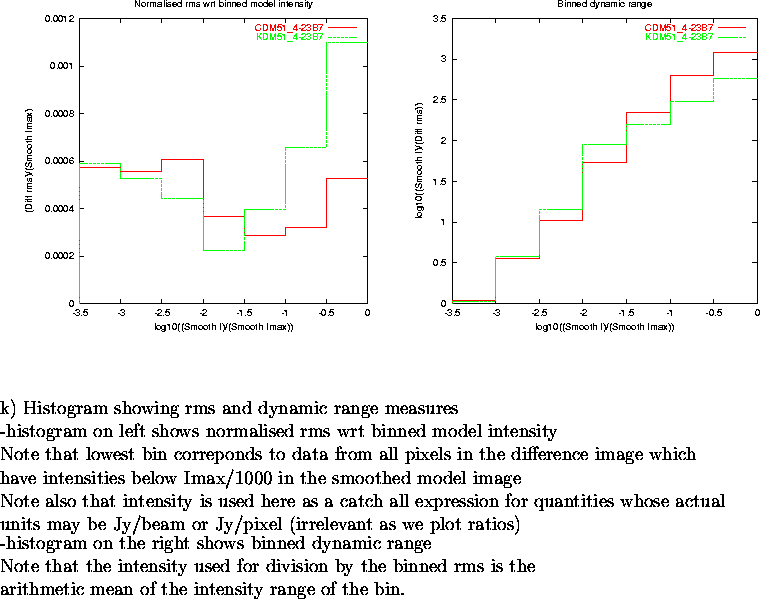

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KandCDM51_4-... ...s is the\\ arithmetic mean of the intensity range of the bin. \par\end{figure}$
