CLEAN results for HM51_4+25 simulations

CLEAN results for xHM51_4+25B7 simulations

Naming convention
-----------------
First character: 	K = (Kogan) ring type array
			C = (Conway) spiral type array
Second character:  	A, C or E, denoting resolution of array
Characters 3-5:         Member of SIL- M51, CYG, MAR, SDC or MPD
Characters 6 and 7:     SN (snapshot) or track, e.g. _4 for 4hr track
Characters 8-10:        signed declination
Characters 11 and 12:   Wavelength, e.g. _1 or _3 for 1 and 3mm respectively
			or b7  corresponding to ALMA band 7 frequency (345GHz)

Images CLEANed for 10,000 iterations.

Note also that the fidelity image is the ratio of (convolved model image) and (absolute value of the difference image truncated at 0.7 x rms of difference image). Importantly, in the figures below this latter rms value is different for each of the K and C array cases, resulting in the C array Fidelity image showing more structure despite (or as a consequence of) having half the rms value for its difference image.

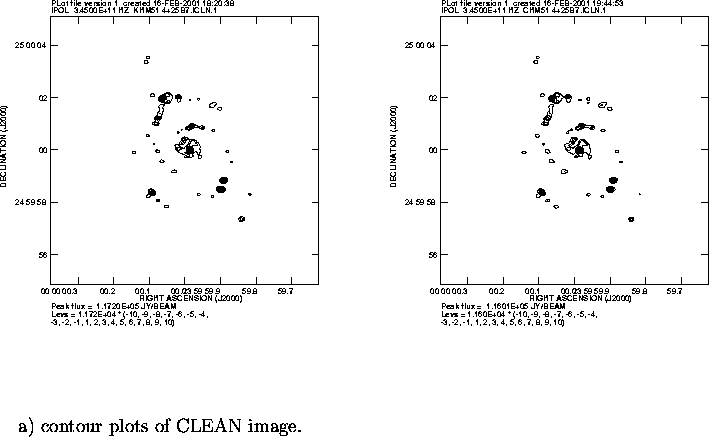

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KHM51_4+25B7... ...} \par\parbox[t]{578pt}{~~~~~~a) contour plots of CLEAN image.} \par\end{figure}$

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KHM51_4+25B7... ...par\parbox[t]{578pt}{~~~~~~b) grey scale plots of CLEAN image.} \par\end{figure}$

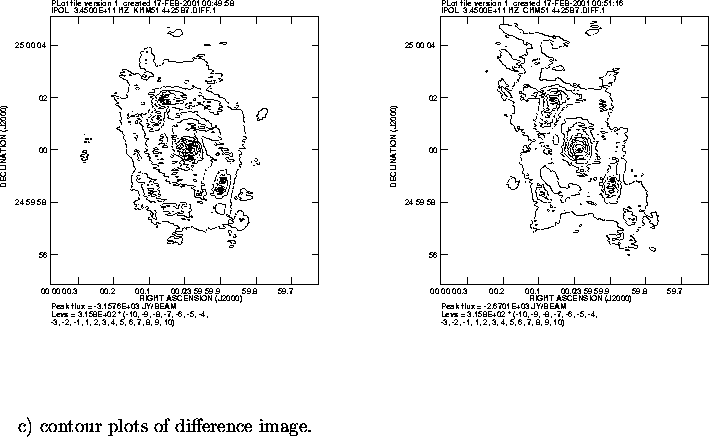

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KHM51_4+25B7... ...r\parbox[t]{578pt}{~~~~~~c) contour plots of difference image.} \par\end{figure}$

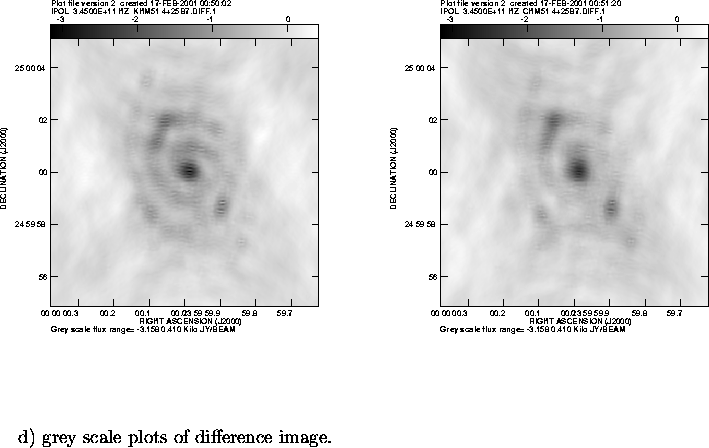

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KHM51_4+25B7... ...arbox[t]{578pt}{~~~~~~d) grey scale plots of difference image.} \par\end{figure}$

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KHM51_4+25B7... ...8pt}{~~~~~~e) histograms of pixel values for difference image.} \par\end{figure}$

f) Listing of max, min, mean and rms for difference images

Image= KHM51_4+25B7.DIFF . 1 9 xywind= 1 1 513 513 Mean and rms found by including all data: Mean=-1.9117E+02 Rms= 3.1179E+02 JY/BEAM over 263169. pixels Minimum=-3.1576E+03 at 267 260 1 1 Maximum= 4.1041E+02 at 407 329 1 1

Image= CHM51_4+25B7.DIFF . 1 9 xywind= 1 1 513 513 Mean and rms found by including all data: Mean=-1.7077E+02 Rms= 2.9549E+02 JY/BEAM over 263169. pixels Minimum=-2.6701E+03 at 266 260 1 1 Maximum= 3.0578E+02 at 501 444 1 1

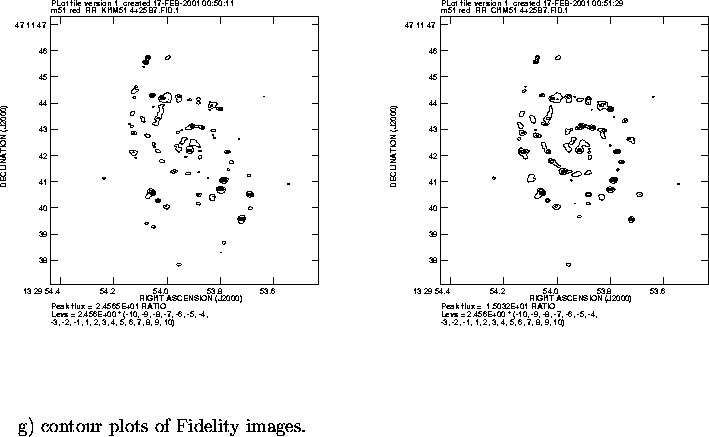

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KHM51_4+25B7... ...ar\parbox[t]{578pt}{~~~~~~g) contour plots of Fidelity images.} \par\end{figure}$

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KHM51_4+25B7... ...parbox[t]{578pt}{~~~~~~h) grey scale plots of Fidelity images.} \par\end{figure}$

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KandCHM51_4+... ...n bins with 0 pixels and 1 pixel\\ in the graph on the left.} \par\end{figure}$

j) Listing of max, min, mean and rms for fidelity images

Image= KHM51_4+25B7.FID . 1 9 xywind= 1 1 513 513 Mean and rms found by including all data: Mean= 3.4783E-01 Rms= 6.2717E-01 RATIO over 263169. pixels Minimum=-7.6688E-07 at 25 260 1 Maximum= 2.4565E+01 at 330 200 1

Image= CHM51_4+25B7.FID . 1 9 xywind= 1 1 513 513 Mean and rms found by including all data: Mean= 3.8655E-01 Rms= 6.9098E-01 RATIO over 263169. pixels Minimum=-8.0918E-07 at 25 260 1 Maximum= 1.5032E+01 at 331 200 1

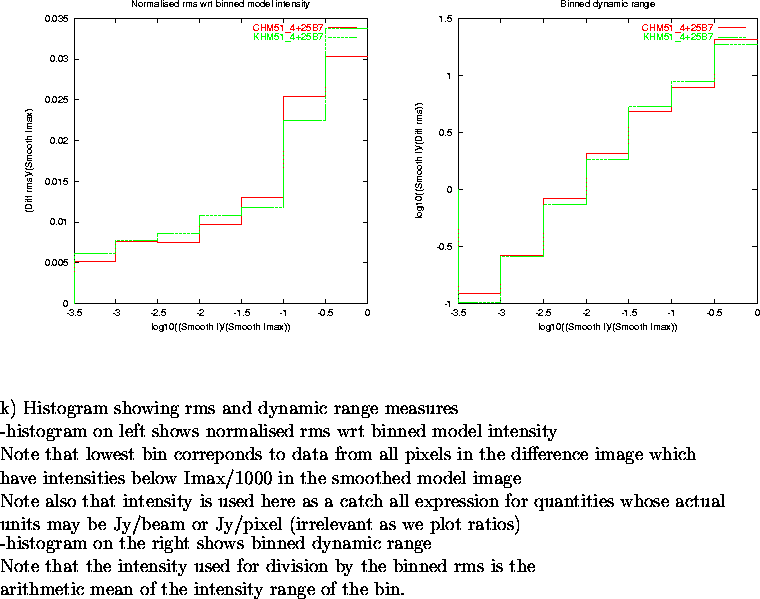

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/KandCHM51_4+... ...s is the\\ arithmetic mean of the intensity range of the bin. \par\end{figure}$

2001-02-17
