Model images convolved with CLEAN beam for A array and +23 declination

CLEAN beam calculated using :

BMAJ = 5 times pixel scale,  approx. equal to dirty beam FWHM
     = 0.05 for A array, 0.22 for C array, 1 for E array
BMIN = BMAJ / cos (declination + 23 degrees)
BPA  = 0

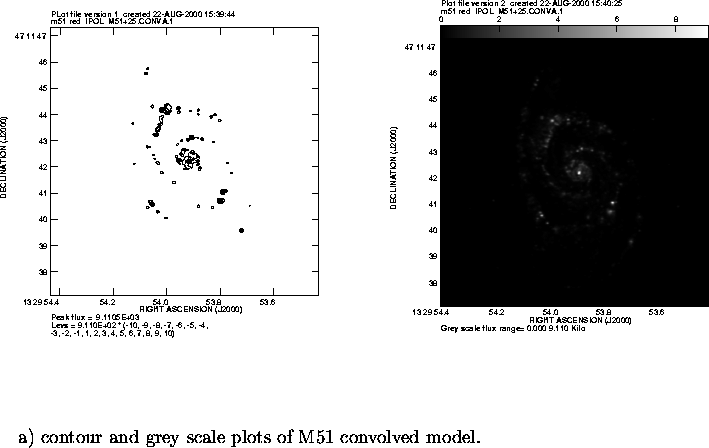

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/M51+25.CONVA... ...{~~~~~~a) contour and grey scale plots of M51 convolved model.} \par\end{figure}$

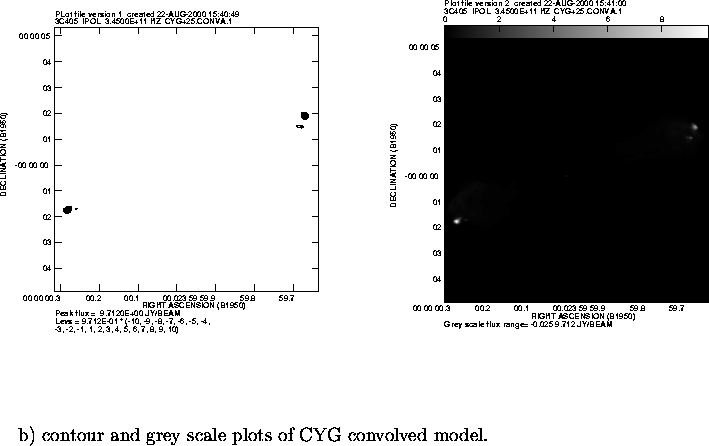

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/CYG+25.CONVA... ...{~~~~~~b) contour and grey scale plots of CYG convolved model.} \par\end{figure}$

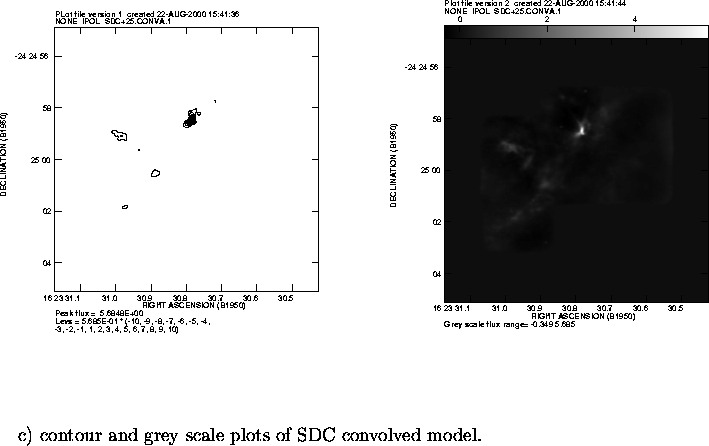

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/SDC+25.CONVA... ...{~~~~~~c) contour and grey scale plots of SDC convolved model.} \par\end{figure}$

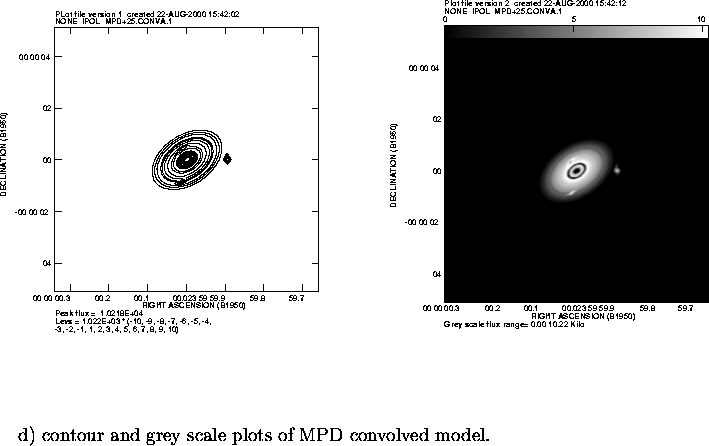

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/MPD+25.CONVA... ...{~~~~~~d) contour and grey scale plots of MPD convolved model.} \par\end{figure}$

$\begin{figure} \par\vspace{3.6in} \special{psfile=/wine/alma/myarea/MAR+25.CONVA... ...{~~~~~~e) contour and grey scale plots of MAR convolved model.} \par\end{figure}$

2000-08-22
